Brand Name : TX TELSIG
Model Number : TX-A-PTXD
Certification : SGS,ISO9001
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : T/T,Paypal, Etc.
Supply Ability : 200,000pcs/month
Delivery Time : In 2 work day
Packaging Details : Durable case or box
Type : Ceiling Barrel Antenna
Frequency Range : 698-2700MHz (Customized )
Gain : 12dB
Impedance : 50Ω
VSWR : ≤1.5
Max Power : 50W
Omni Directional Ceiling Antenna 12dB for Phone Signal Repeater 2G 3G 4G LTE 698 to 2700MHZ
TXtelsig is the developer and producer of the signal jamming and wireless coverage product
Feature
1. Concise shape suitable for modern indoor or outdoor design
2. Easy to install and operate
3. Crashproof, Waterproof, Corrosion Resistant to deal with terrible environment
4. Optimal size to save space
5. High gain, Low VSWR
6. Strong anti-interference ability
Specification
TXtelsig No. | TX-A-PTXD |
Frequency range | 698-960/1710-2700MHz |
Gain | 10/12DBi |
Non-circularity | ±2 |
VSWR | ≤1.5 |
Polarization | Vertical |
Max power | 50W |
Input Impedance | 50Ω |
Lightning protection | DC ground |
Connector model | N female or Customized |
Size | 142*115mm |
Working Temperature | -40~60℃ |
Rated Wind Velocity | 60s/m |
Radome color | White |
Connector | N female or customized |
Mounting Mast Diameter | ¢35~¢50mm |
![]() |

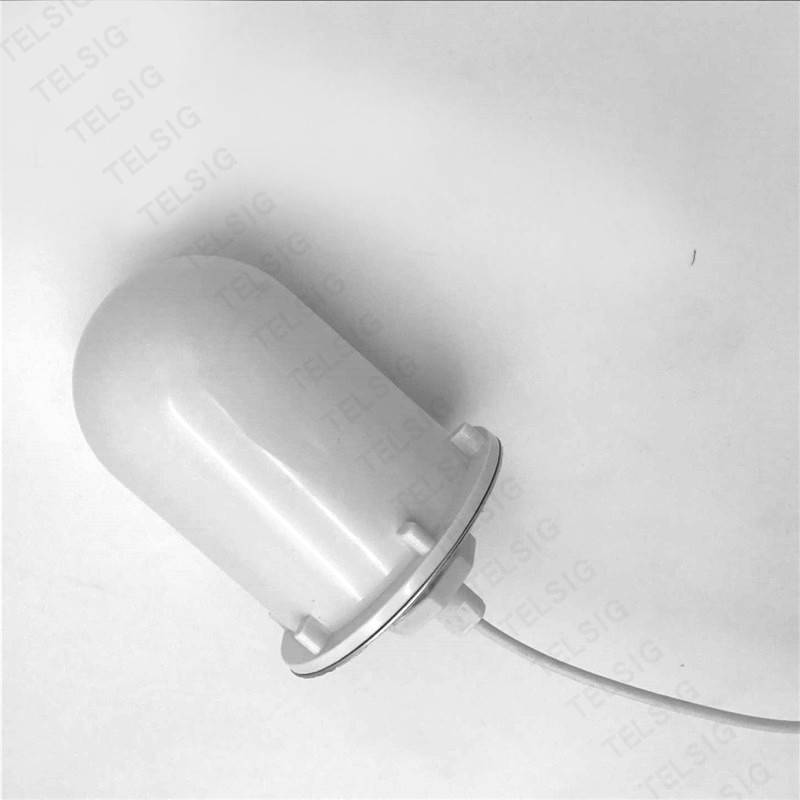

Omni Directional Cell Phone Booster Parts Ceiling Barrel Antenna 12dB For Phone Signal Repeater Images |
